2M DIN6 Flange Type Ground Helical Gear

Technical requirement

Quality Grade: DIN 6

Material: 20CrMnTi

Tooth profile: helical teeth

Left Hand Angle: 19°31'42"

Hardness treatment: overall carburizing HRC55-60°

Production process: gear grinding

SOTER presents the 2M DIN6 Flange Type Ground Helical Gear, a product that stands as a testament to precision engineering and reliability. Crafted with meticulous attention to detail, this gear exemplifies the commitment to quality that SOTER is renowned for in the manufacturing industry.

Technical Specifications:

Module: The 2M DIN6 Flange Type Ground Helical Gear boasts a module size of 2M, indicating a balanced configuration suitable for a variety of applications.

Quality Grade: Complying with the DIN 6 quality grade, this gear adheres to rigorous standards, ensuring consistent performance and reliability in diverse operational environments.

Material: Constructed from high-quality 20CrMnTi, the gear exhibits a robust composition that contributes to its durability and longevity. This material selection reflects SOTER's commitment to utilizing premium components in their products.

Hardness Treatment: The overall carburizing process imparts a hardness of HRC55-60° to the gear, enhancing its wear resistance and strength. This treatment is a testament to the engineering precision employed in the manufacturing process.

Performance Features:

Precision Machining: The gear undergoes precise machining processes, guaranteeing accurate dimensions and smooth engagement. This meticulous attention to detail ensures good functionality and performance.

Quiet Operation: The helical design of the gear contributes to a quieter operation, reducing noise levels during gear engagement. This makes the 2M DIN6 Flange Type Ground Helical Gear suitable for applications where noise reduction is a critical consideration.

High Load Capacity: With a focus on robust design and quality materials, this gear exhibits a high load-carrying capacity. This feature makes it suitable for applications where heavy loads and durability are paramount.

Versatility: The 2M module size and DIN 6 quality grade make this gear versatile, accommodating a wide range of applications across various industries. Its adaptability adds to its value, offering a solution for diverse operational requirements.

Applications:

Industrial Machinery: The 2M DIN6 Flange Type Ground Helical Gear finds application in industrial machinery, providing reliable power transmission in manufacturing and processing equipment.

Automotive Systems: SOTER's gear is well-suited for integration into automotive systems, contributing to efficient and seamless performance in transmissions and drivetrain applications.

Mining Equipment: The robust construction and high load capacity make this gear ideal for deployment in mining equipment, where durability and reliability are critical for sustained operation.

Agricultural Machinery: In the realm of agricultural machinery, this gear ensures dependable power transmission, contributing to the efficiency of various farming equipment.

Construction Machinery: The 2M DIN6 Flange Type Ground Helical Gear is a reliable choice for construction machinery, where heavy-duty performance is essential for the success of construction projects.

Compliance and Certification:

The 2M DIN6 Flange Type Ground Helical Gear complies with industry standards and undergoes rigorous testing to meet quality and safety requirements. SOTER places a high priority on obtaining relevant certifications, providing customers with the assurance that the gear meets established benchmarks for performance and reliability.

In conclusion, the 2M DIN6 Flange Type Ground Helical Gear from SOTER embodies a commitment to quality and precision engineering. Its technical specifications, performance features, and versatile applications make it a reliable component in a myriad of industries. With a focus on durability, precision, and adaptability, this gear is poised to meet the demands of modern machinery, contributing to the seamless operation of various applications.

PREV: 3M DIN6 Ground Helical Gear
NEXT:No next article

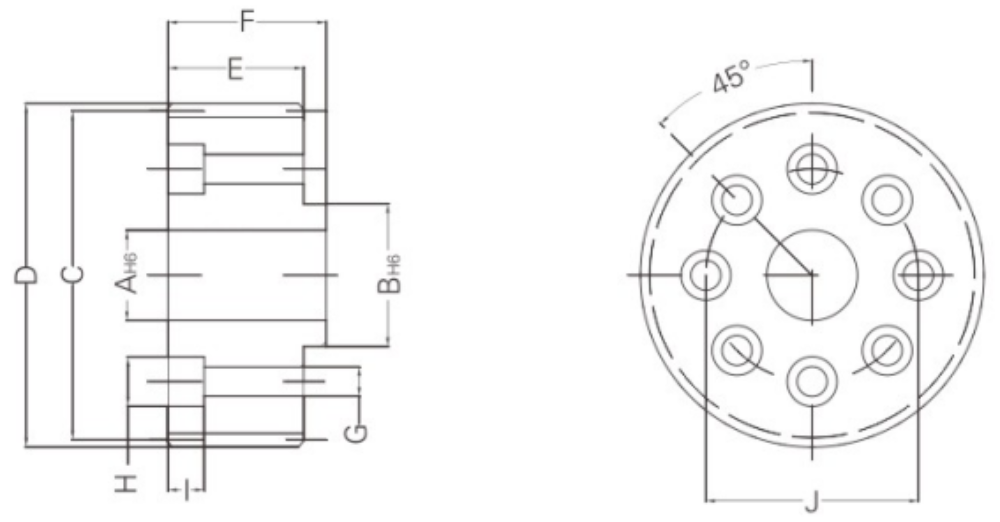

Code	Module	Number Of Teeth	AH6	BH6	C	D	E	F	G	H	I	J
YMCLK26	2	26	15	20	55.174	60.800	26	29.0	5.5	10	12	31.5
YMCLK27	2	27	15	20	57296	61.296	30	33.5	5.5	10	11	31.5
YMCLK29	2	29	15	20	61.540	67.200	26	29.0	5.5	10	12	31.5
YMCLK35	2	35	15	20	74.272	79.800	26	29.0	5.5	10	12	31.5
YMCLK29-20	2	29	20	25	61.540	67.200	26	30.0	6.6	11	14	40
YMCLK33	2	33	20	31.5	70.028	75.599	26	30.0	6.6	11	14	50
YMCLK35	2	35	20	31.5	74.300	70.500	26	30	6.6	11	14	50
YMCLK36	2	36	20	31.5	76.394	80.394	30	34.0	6.6	11	8	50
YMCLK37	2	37	20	31.5	78.517	84.200	26	30.0	6.6	11	14	50
