Wholesale DIN6 Straight Teeth Ground Gear Rack

Home / Products / Straight Teeth Rack / DIN6 Straight Teeth Ground Gear Rack

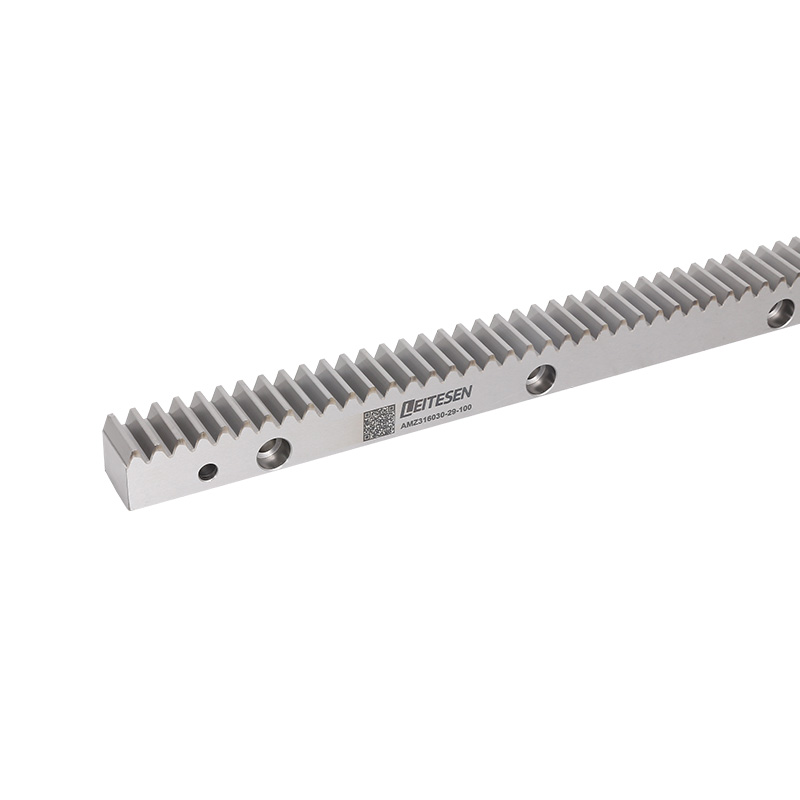

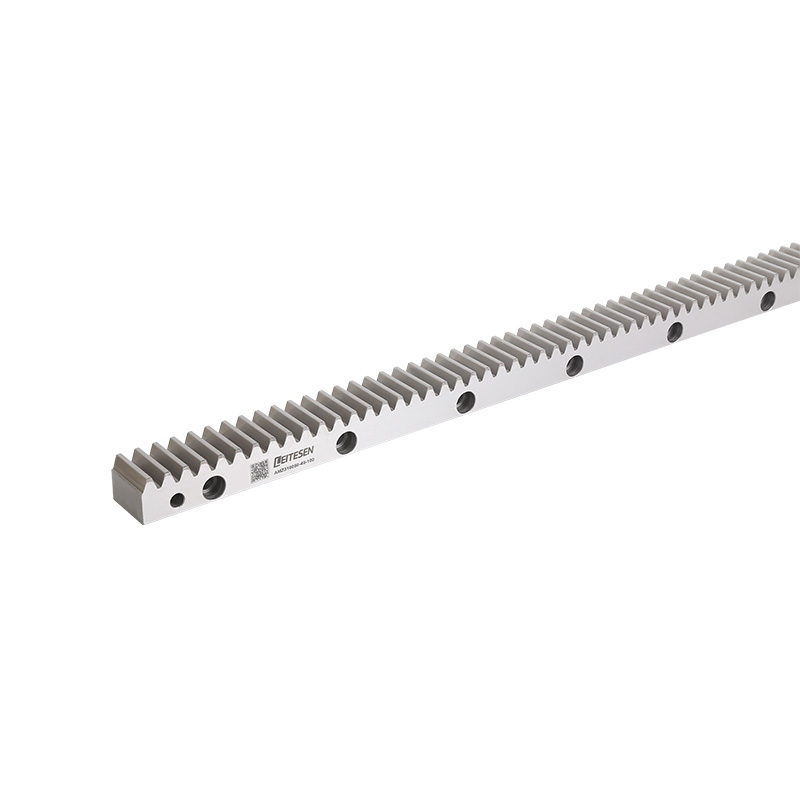

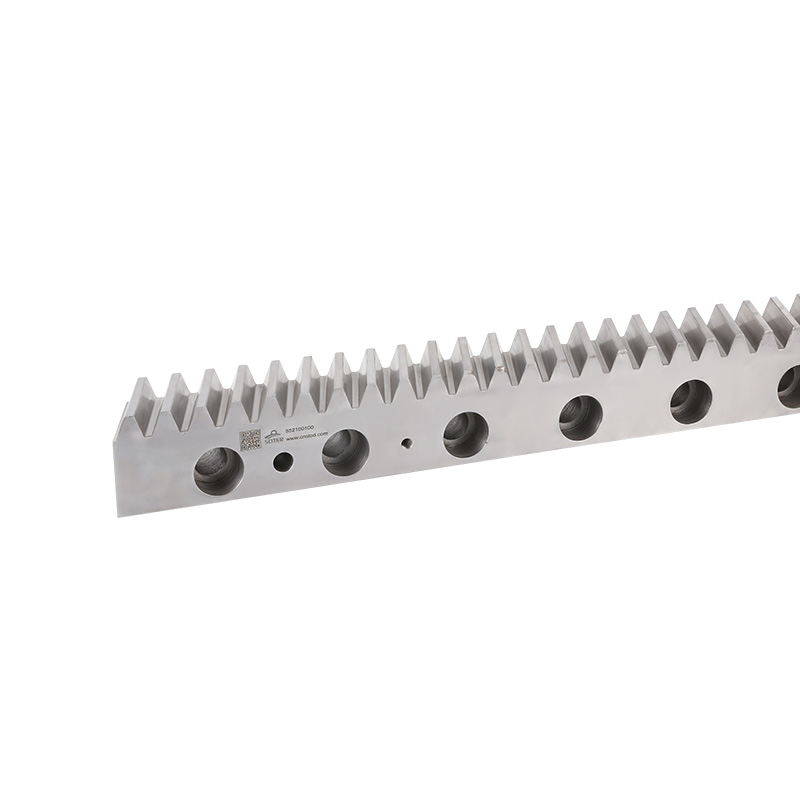

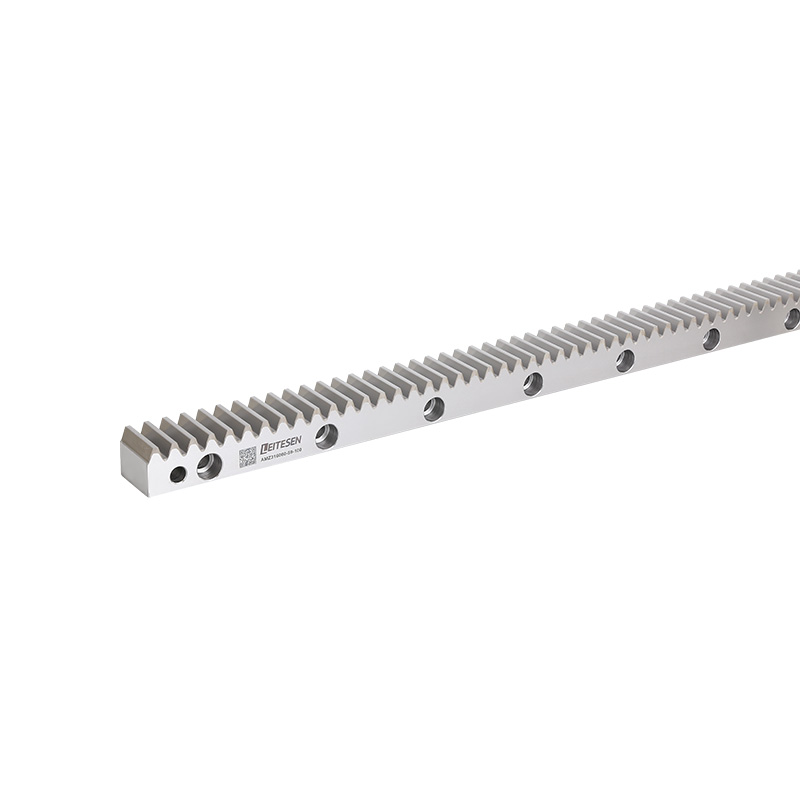

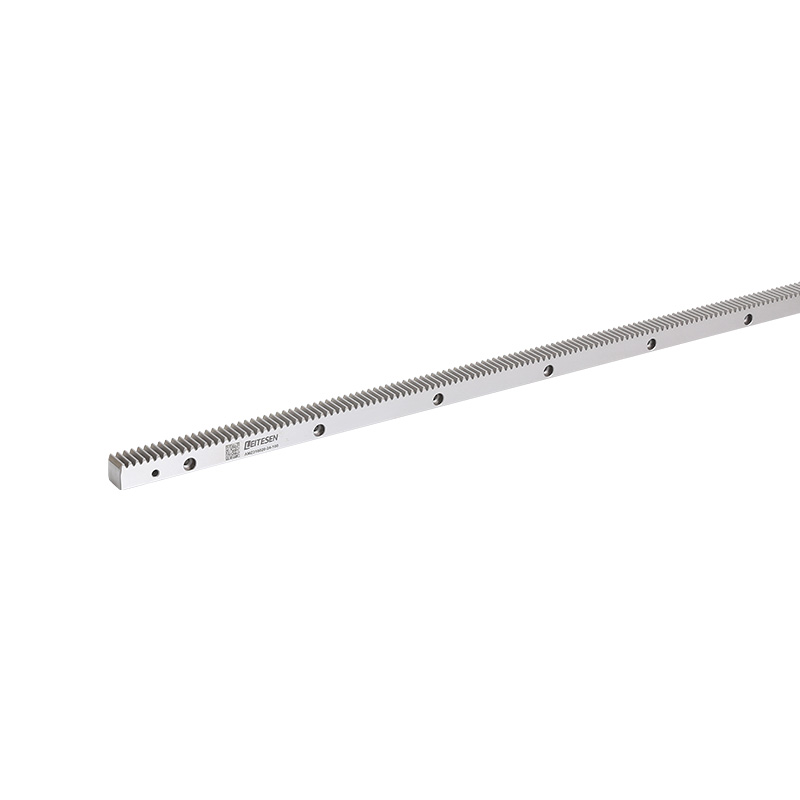

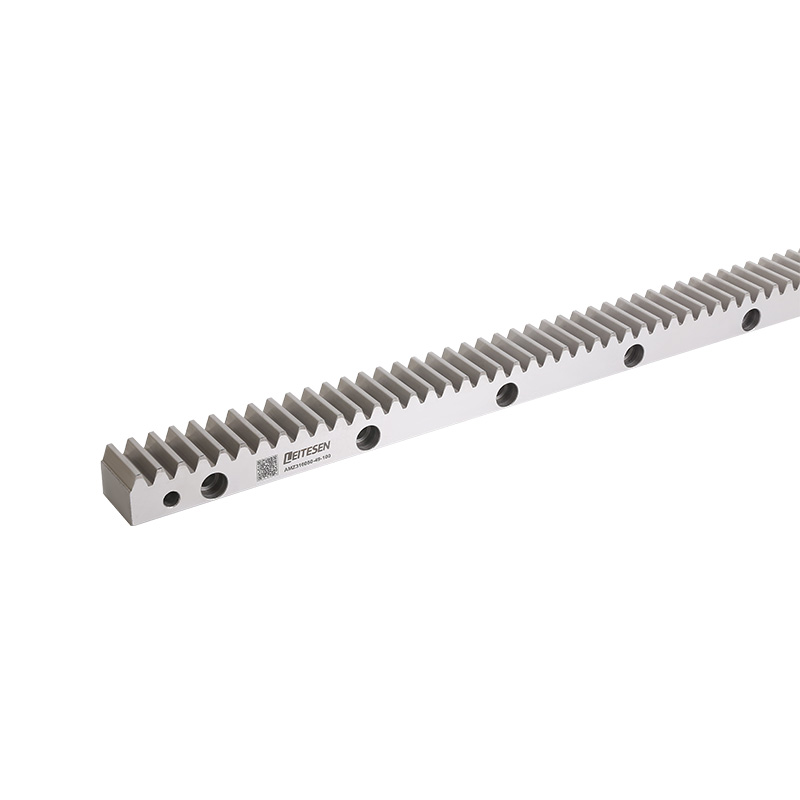

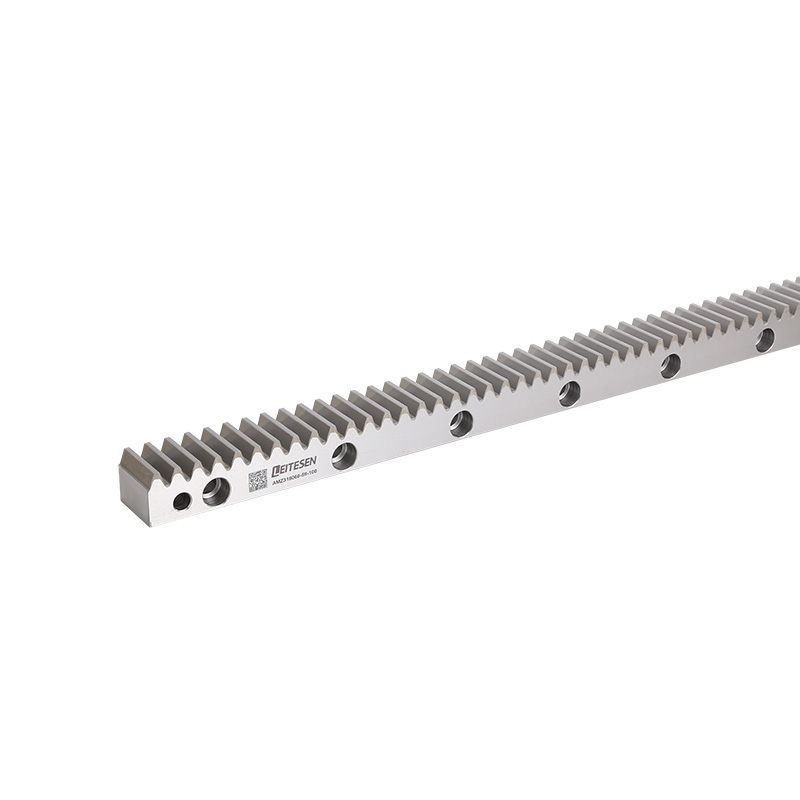

DIN6 Straight Teeth Ground Gear Rack

DIN6 Straight Teeth Ground Gear Rack

Technical requirement
Quality Grade: DIN 6
Material: S45C/42CrMo
Tooth profile: straight teeth
Hardness treatment: high frequency quenching HRC48-52/ HRC50-55°
Production process: Ground on all sides after hardening
Introducing the DIN6 Straight Teeth Ground Gear Rack by SOTER, a meticulously crafted product that exemplifies precision engineering and high quality. As a manufacturer in the industry, SOTER takes pride in presenting a gear rack that adheres to stringent technical requirements, embodying excellence in design and functionality.
Advanced Technical:
The DIN 6 quality grade sets a standard that is synonymous with reliability and consistency. Complying with stringent quality standards, the material used is either S45C or 42CrMo, ensuring robustness and durability in diverse operating conditions. The tooth profile, characterized by straight teeth, is a testament to the precision engineering employed in the manufacturing process.
The hardness treatment, involving high-frequency quenching with HRC48-52/HRC50-55°, imparts good hardness to the gear rack. This meticulous process results in a product that can withstand wear and tear, providing consistent performance over an extended period.
Production Process:
The production process of the DIN6 Straight Teeth Ground Gear Rack involves a critical step - grinding on all sides after hardening. This step is paramount in achieving precision and accuracy in the gear rack's dimensions. The ground finish ensures a smooth surface, reducing friction and enhancing the overall efficiency of the gear rack in its intended applications.
Versatile Applications:
The versatility of the DIN6 gear rack makes it suitable for a myriad of applications across various industries. Its straight teeth profile, combined with the right-hand angle, makes it good for applications where precise motion control and reliability are crucial. Industries such as manufacturing, automation, and robotics benefit from the seamless integration of this gear rack into their systems.
Contact Us
PREV: No previous article
NEXT:DIN7 Straight-Toothed Milled Rack

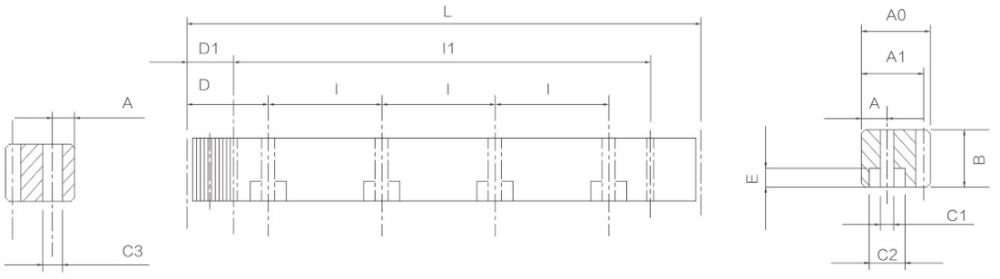

Code Module    Pt L Tooth
No.		 B A0  A1 D l Hole
No.		  A  C1 C2 E D1 I1 C3 Fp
551 010 050   1.5 4.7123 499.51 106  17 17 15.5 62.44 124.88 4 7  6 9.5 7 29 441.5 5.7 0.029
551 010 100   1.5 4.7123 999.03 212  17 17 15.5 62.44 124.88 8  7  6 9.5  7 29 941.0 5.7 0.033
551 015 050   1.5 4.7123 499.50 106  19 19 17.5 62.44 124.88 4  8  7 11  7 29 441.5 5.7 0.020
551 015 100   1.5 4.7123 999.03 212  19 19 17.5 62.44 124.88 8  8  7 11  7 29 941.0 5.7 0.033
551 020 050    2 6.283 502.65 80  24 24  22 62.83 125.66 4  8  7 11  7 31.3 440.1 5.7 0.029
551 020 100    2 6.283 1005.31 160  24 24  22 62.83 125.66 8  8  7 11 7 31.3 942.7 5.7 0.034
551 030 050    3 9.4247 508.94 54  29 29  26 63.62 127.23 4  9  10 15  9 34.4 440.1 7.7 0.032
551 030 100    3 9.4247 4017.88 108  29 29  26 63.62 42723 8  9  10 15  9 34.4 949.1 7.7 0.037
551 040 050    4 12.5666 502.65 40  39 39  35 62.83 125.66 4  12  10 15 9 37.5 427.7 7.7 0.034
551 040 100    4 12.5666 1005.31 80  39 39  35 62.82 25.66 8  12  10 15 9 37.5 930.3 7.7 0.04
551 050 050    5 15.7079 502.65 32  49 39  34 62.83 125.66 4  12  14 20  13 30.1 442.4 11.7 0.034
551 050 100    5 15.7079 1005.31 64  49 39  34 62.83 125.66 8  12  14 20  13 30.1 945.0 11.7 0.04
551 060 050    6 18.8495 508.94 27  59 49  43 63.62 127.23 4  16  18 26  17 31.4 446.1 15.7 0.034
551 060 100    6 18.8495 1017.88 54  59 49  43 63.62 127.23 8  16  18 26  17 31.4 955.0 15.7 0.04
551 080 050    8 25.1327 502.65 20  79 79  71 62.83 125.66 4  25  22 33  21 26.6 449.5 19.7 0.037
551 080 100    8 25.1327 1005.31 40  79 79  71 62.83 125.66 8  25  22 33  21 26.6 952.0 19.7 0.043
551 100 100    10 31.4159 1005.31 32  99 99  89 62.83 125.66 8  32  33 48  32 25.67 754.0 19.7 0.043
551 120 100    12 37.6991 1017.88 27  120 120  108 63.6 127.23 8  40  39 58  38 127.23 763.4 19.7 0.046
Pe= Modulus × π Fp= Total Pitch Error
