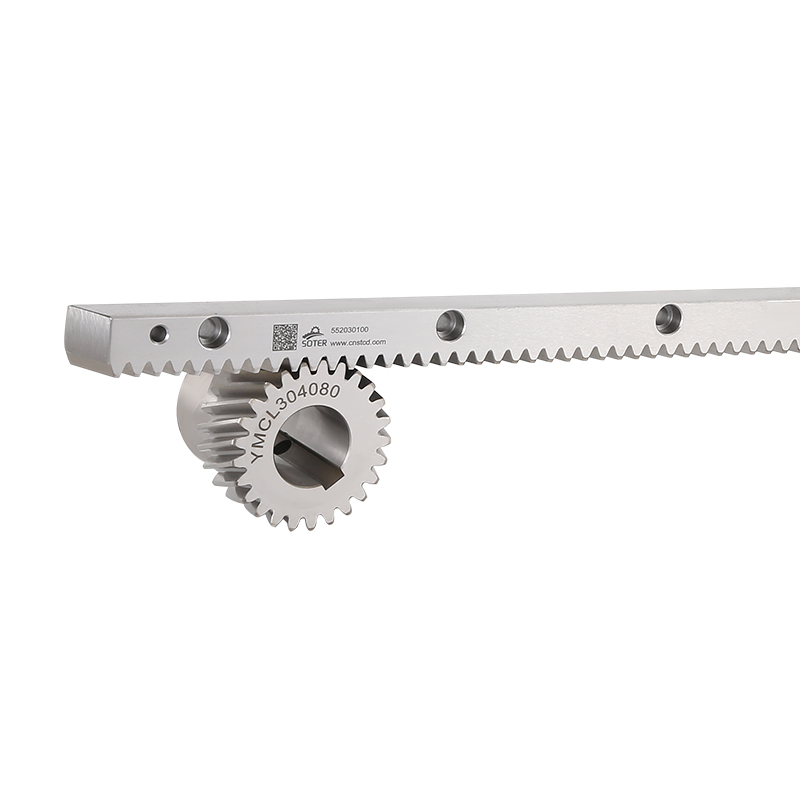

DIN8 Straight-Toothed Milled Rack

Technical requirement

Quality Grade: DIN 8

Material: S45C

Tooth profile: straight teeth

Hardness treatment: high frequency quenching HRC48-52°

Production process: four sides flat grinding, fine insertion, surface blackening, or phosphating.

Welcome to the world of precision engineering, where SOTER introduces the DIN8 Straight-Toothed Milled Rack. This product is designed to meet the exacting standards of industries that prioritize reliability and accuracy in mechanical components.

Design and Technical Expertise:

The DIN8 Rack, crafted with precision and technical finesse, adheres to stringent technical requirements, reflecting our dedication to quality. Its grade of DIN 8 ensures a high standard, and the use of S45C material underscores our commitment to durability.

Hardness Treatment:

To withstand industrial rigors, the DIN8 Rack undergoes high-frequency quenching, achieving a hardness level between HRC48-52°. This treatment ensures structural integrity under varying conditions, providing a reliable solution for diverse applications.

Production Process:

The manufacturing process emphasizes detail and precision, employing four sides of flat grinding for desired flatness and parallelism. Fine insertion techniques enhance overall product quality. Surface finishing with blackening or phosphating enhances resistance to corrosion and wear.

Customer-Centric Approach:

SOTER's commitment to customer satisfaction extends beyond the initial purchase. A customer-centric approach guides our support and service offerings, ensuring that clients have access to expertise and assistance throughout the lifecycle of the DIN8 Rack. Timely responses to inquiries, readily available technical support, and a commitment to addressing customer needs reflect our dedication to fostering long-lasting partnerships.

Versatility and Applications:

The DIN8 Straight-Toothed Milled Rack is a versatile solution for industries requiring precision and reliability. It finds applications in automation, precision machinery, m

PREV: DIN7 Straight-Toothed Milled Rack
NEXT:No next article

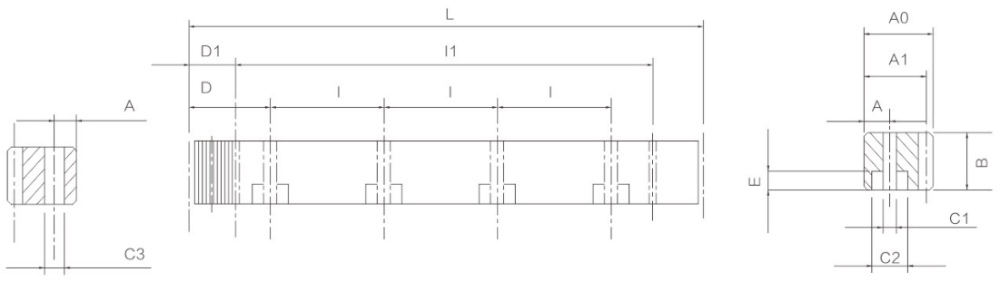

Code			Module	Pt	L	Tooth No.	B	A0	A1	D	l	Hole No.	A	C1	C2	E	D1	l1	C3	Fp
771	010	050	1.5	4.7123	499.51	106	17	17	15.5	62.44	124.88	4	7	6	9.5	7	29	441.5	5.7	0.08
771	010	100	1.5	4.7123	999.03	212	17	17	15.5	62.44	124.88	8	7	6	9.5	7	29	941.0	5.7	0.09
771	015	050	1.5	4.7123	499.50	106	19	19	47.5	6,244	124.88	4	8	7	11	7	29	441.5	5.7	0.08
771	015	100	1.5	4.7123	999.03	212	19	19	7.5	62.44	124.88	8	8	7	11	7	29	941.0	5.7	0.09
771	020	050	2	6.2831	502.65	80	24	24	22	62.83	125.66	4	8	7	11	7	31.3	440.1	5.7	0.08
771	020	100	2	6.2831	1005.31	160	24	24	22	62.83	125.66	8	8	7	11	7	31.3	942.7	5.7	0.09
771	030	050	3	9.4247	508.94	54	29	29	26	63.62	127.23	4	9	10	15	9	34.4	440.1	7.7	0.088
771	030	100	3	9.4247	404788	108	29	29	26	63.62	127.23	8	9	10	15	9	344	949.1	7.7	0.101
771	040	050	4	12.5666	502.65	40	39	39	35	62.83	125.66	4	12	10	15	9	37.5	427.7	7.7	0.095
771	040	100	4	12.5666	1005.31	80	39	39	35	62.83	125.66	8	12	10	15	9	37.5	930.3	7.7	0.109
771	050	050	5	15.7079	502.65	32	49	39	34	62.83	125.66	4	12	14	20	13	30.1	442.4	11.7	0.095
771	050	100	5	15.7079	1005.31	64	49	39	34	62.83	125.66	8	12	14	20	13	30.1	945.0	11.7	0.109
771	060	050	6	18.8495	508.94	27	59	49	43	63.62	127.23	4	16	18	26	17	31.4	446.1	15.7	0.095
771	060	100	6	18.8495	1017.88	54	59	49	43	63.62	127.23	8	16	18	26	17	31.4	955.0	15.7	0.109
771	080	050	8	25.1327	502.65	20	79	79	71	62.83	125.66	4	25	22	33	21	26.6	449.5	19.7	0.1
771	080	100	8	25.1327	1005.31	40	79	79	71	62.83	125.66	8	25	22	33	21	26.6	952.0	19.7	0.11
771	100	100	10	31.4159	1005.31	32	99	99	89	62.83	125.66	8	32	33	48	32	125.7	753.96	19.7	0.12
771	120	100	12	37.6991	1017.88	27	120	120	108	63.6	127.23	8	40	39	58	38	127.23	763.4	19.7	0.12

Pe= Modulus × π Fp= Total Pitch Error
