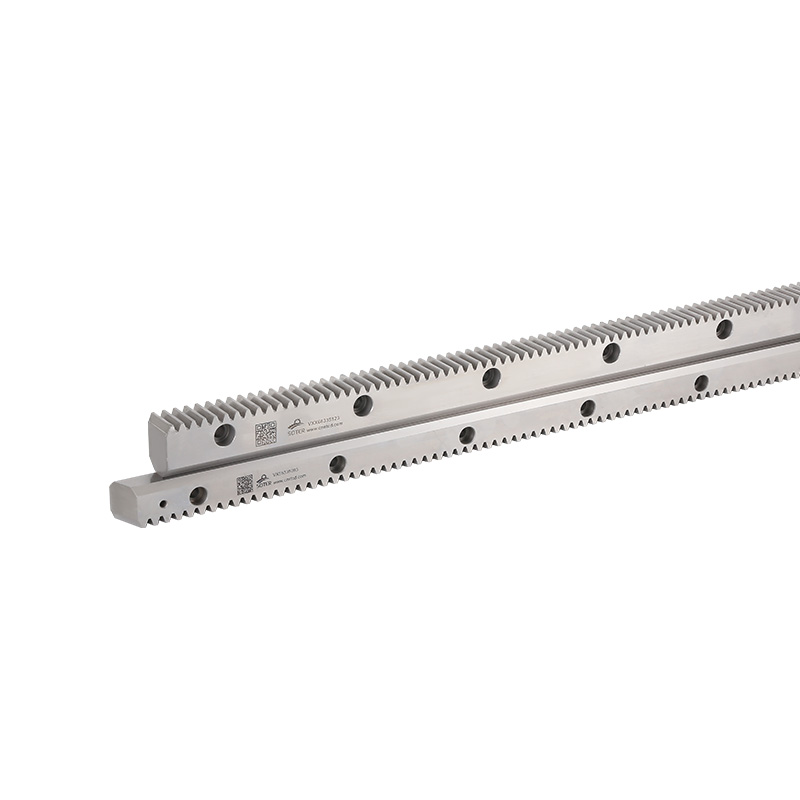

DIN6 V Type Helical Ground Guideway Rack

Technical requirement

Quality Grade: DIN 6

Material: 42CrMo

Tooth type: helical tooth

Hardness treatment: high frequency quenching HRC48-52°/ carburizing quenching HRC55-60°

Production process: four sides grinding, tooth surface grinding, V rail surface grinding.

The DIN6 V Type Helical Ground Guideway Rack is crafted with precision and attention to detail, embodying SOTER's commitment to delivering quality solutions for industrial challenges. This product is specifically engineered to provide a dependable means of linear motion, offering enhanced performance across a range of applications.

Advantages:

Durability:

The ground guideway rack is constructed with high-quality materials to ensure durability and longevity. This robust design contributes to the product's ability to withstand challenging operational conditions, making it suitable for heavy-duty applications.

Precision Engineering:

SOTER's dedication to precision engineering is evident in every aspect of the DIN6 V Type Helical Ground Guideway Rack. This ensures consistent and accurate linear motion, meeting the stringent requirements of various industries.

Smooth Operation:

The helical ground guideway design facilitates smooth and efficient linear motion. This feature not only enhances the overall performance of the machinery but also reduces wear and tear on components, contributing to extended operational life.

Ease of Installation:

SOTER understands the importance of reducing downtime during installation. The DIN6 V Type Helical Ground Guideway Rack is designed with user-friendly features that simplify the installation process, allowing for a quicker and more efficient setup.

Functionality:

The DIN6 V Type Helical Ground Guideway Rack boasts a range of functional features that contribute to its performance:

Helical Design:

The helical design of the ground guideway rack is instrumental in providing smooth and consistent linear motion. This design choice reduces friction and ensures reliable operation over extended periods.

Material Selection:

Careful consideration has been given to the selection of materials, emphasizing durability and resistance to wear. This ensures that the product maintains its performance integrity even under demanding operational conditions.

Load-Bearing Capacity:

The ground guideway rack is designed to handle varying load capacities, making it adaptable to a wide range of industrial applications. This load-bearing capacity contributes to the product's reliability and versatility.

Compatibility:

Compatibility with different systems and machinery is a key feature of the DIN6 V Type Helical Ground Guideway Rack. This ensures that it can be seamlessly integrated into existing setups without requiring significant modifications.

Applications:

The DIN6 V Type Helical Ground Guideway Rack finds application across a broad spectrum of industries due to its reliability and adaptability. Some notable applications include:

Machine Tools:

The ground guideway rack is well-suited for use in machine tools, where precise linear motion is crucial for achieving accurate machining results. Its durability ensures consistent performance in demanding machining environments.

Automation Systems:

In automated systems, the product serves as a reliable component for achieving controlled and repeatable linear motion. Its versatility allows for integration into various automation setups.

Material Handling Equipment:

The ground guideway rack is a choice for material handling equipment, providing the necessary linear motion for efficient and reliable transport of goods within industrial facilities.

Robotics:

Robotics applications benefit from the precision and smooth operation of the DIN6 V Type Helical Ground Guideway Rack. It plays a crucial role in ensuring the accuracy of robotic movements in manufacturing and assembly processes.

Industrial Machinery:

Various industrial machinery, ranging from presses to textile machines, can integrate this ground guideway rack to enhance their linear motion capabilities. Its robust construction makes it suitable for heavy-duty industrial environments.

The DIN6 V Type Helical Ground Guideway Rack by SOTER is a dependable and versatile solution for achieving precise linear motion in industrial applications.

PREV: DIN6 V Type Straight Ground Guideway Rack
NEXT:No next article

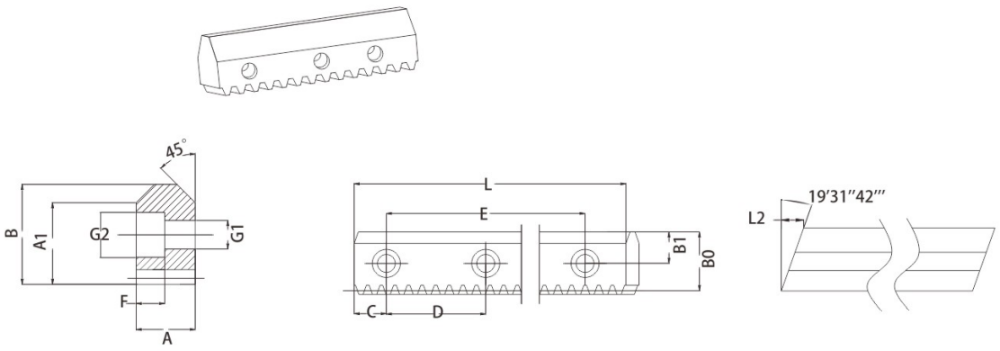

Code	Module	Pt	L	L2	A	B	B0	C	D	B1	A1	G1	G2	F	E
VXX66315063	1.5	4.9999	630	5.143	14.5	24.5	23	65	100	13	20	7	11	7	500
VXX66315103	1.5	4.9999	1030	5.143	14.5	24.5	23	65	100	13	20	7	11	7	900
VXX66320063	1.5	4.9999	630	6.916	19.5	29.5	28	65	100	15.5	23.5	9	15	9	500
VXX66320103	1.5	4.9999	1030	6.916	19.5	29.5	28	65	100	15.5	23.5	9	15	9	900
VXX66325064	2	6.6666	640	8.76	24.7	33	31	70	100	18.5	25.2	9	15	9	500
VXX66325094	2	6.6666	940	8.76	24.7	33	31	70	100	18.5	25.2	9	15	9	800
VXX66325124	2	6.6666	1240	8.76	24.7	33	31	70	100	18.5	25.2	9	15	9	1100
VXX66335063	3	9.9999	630	12.272	34.6	46.6	43.6	65	100	28.6	36.7	11	18	11	500
VXX66335093	3	9.9999	930	12.272	34.6	46.6	43.6	65	100	28.6	36.7	11	18	11	800
VXX66335123	3	9.9999	1230	12.272	34.6	46.6	43.6	65	100	28.6	36.7	11	18	11	1100

Total pitch error GTF/1000<0.036mm
