Wholesale DIN6 V Type Straight Ground Guideway Rack

Home / Products / V Type Guideway Rack / DIN6 V Type Straight Ground Guideway Rack

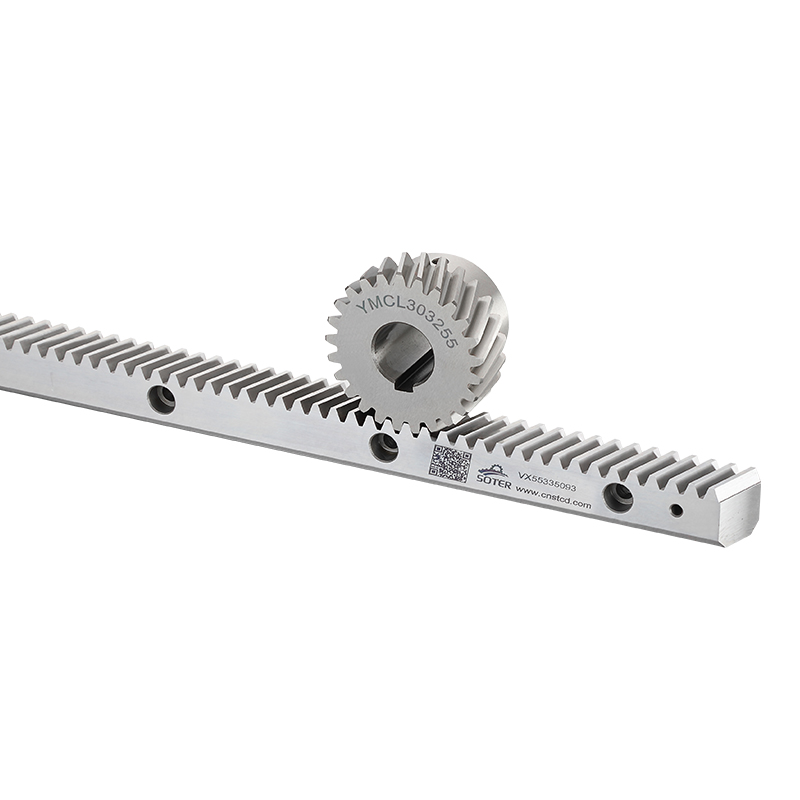

DIN6 V Type Straight Ground Guideway Rack

DIN6 V Type Straight Ground Guideway Rack

Technical requirement
Quality Grade: DIN 6
Material: S45C/ 42CrMo
Tooth type: straight tooth.
Production process: four sides grinding, tooth surface grinding, V rail surface grinding.
Hardness treatment: high frequency quenching HRC48-52°/ carburizing quenching HRC55-60°

The DIN6 V Type Straight Ground Guideway Rack is meticulously crafted with a focus on robustness and longevity. The design incorporates a V type straight ground guideway, a configuration known for its stability and smooth operation. This rack is engineered to withstand challenging operational conditions, making it a dependable choice for a wide range of industries.
Material Composition:
Crafted from high-quality materials, the DIN6 V Type Straight Ground Guideway Rack undergoes stringent quality control measures during the manufacturing process. This ensures that the final product meets industry standards and can withstand the rigors of daily use. The material composition is carefully selected to balance strength and flexibility, allowing the rack to perform under various loads and conditions.
Precision Machining:
SOTER's commitment to precision is evident in the machining of the DIN6 V Type Straight Ground Guideway Rack. Our advanced machining techniques result in a product that meets tight tolerances, ensuring consistent performance and less wear over time. The rack's precision machining also contributes to its compatibility with a variety of machinery and applications.
Key Advantages:
Durability:
The DIN6 V Type Straight Ground Guideway Rack is engineered to be durable, and capable of withstanding the demands of heavy-duty industrial applications. The robust construction and high-quality materials ensure a prolonged lifespan, reducing the need for frequent replacements and maintenance.
Versatility:
With its versatile design, this ground guideway rack finds application in a diverse array of industries. Its adaptability makes it suitable for use in manufacturing, automation, and other sectors where precise linear motion is essential. The V type straight ground guideway facilitates smooth and reliable movement, contributing to the overall efficiency of the machinery it supports.
Cost-Effective Solution:
SOTER understands the importance of cost-effectiveness in today's competitive industrial landscape. The DIN6 V Type Straight Ground Guideway Rack offers a reliable and durable solution at a reasonable cost. By reducing the need for frequent replacements and maintenance, this product contributes to overall cost savings for businesses.
Ease of Installation and Maintenance:
Designed with practicality in mind, the DIN6 V Type Straight Ground Guideway Rack is user-friendly when it comes to installation and maintenance. The straightforward design allows for easy integration into existing systems, and routine maintenance procedures are simplified, reducing downtime and optimizing operational efficiency.
Applications:
The DIN6 V Type Straight Ground Guideway Rack finds applications in a variety of industries, including but not limited to:
Manufacturing:
Integration into automated manufacturing systems for precise linear motion.
Use in CNC machinery for consistent and reliable movement.
Automation:
Contribution to the smooth operation of robotic systems.
An essential component in conveyor systems for controlled material handling.
General Industrial Applications:
Inclusion in machinery requiring linear motion for cutting, shaping, and other processes.
Integration into industrial equipment for efficient and reliable movement.
The DIN6 V Type Straight Ground Guideway Rack by SOTER embodies our commitment to providing practical and reliable engineering solutions. Its durability, versatility, cost-effectiveness, ease of installation and maintenance make it a valuable choice for industries seeking dependable components for their machinery. SOTER continues to deliver products that meet industry standards and contribute to the seamless operation of various industrial processes.
Contact Us
PREV: No previous article
NEXT:DIN6 V Type Helical Ground Guideway Rack

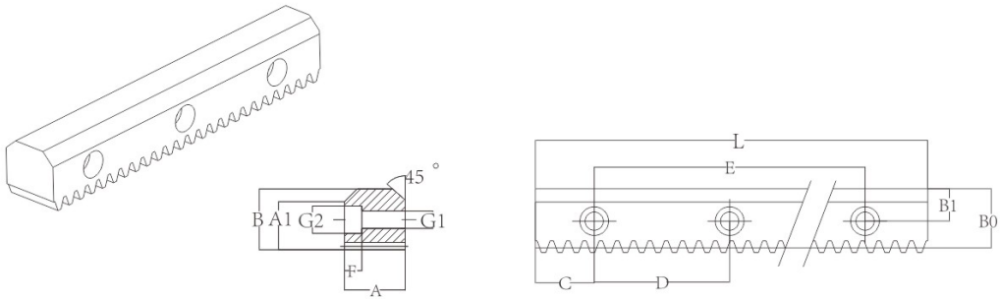

Code Module Pt L A B B0 C D B1 A1 G1 G2 F E
VX55315063 1.5915 5 630 145 24.5 22.9 15 100 13 20 7 11 7 600
VX55315103 1.5915 5 030 14.5 24.5 22.9 15 100 13 20 7 11 7 1000
VX55320063 1.5915 5 630 19.5 29.5 27.9 15 100 15.5 23.5 9 15 9 600
VX55320103 1.5915 5 030 19.5 29.5 27.9 15 100 15.5 23.5 9 15 9 1000
VX55325063 2.3873 7.5 630 24.7 33 30.61 15 100 18.5 25.2 9 15 9 600
VX55325093 2.3873 7.5 930 24.7 33 30.61 15 100 18.5 25.2 9 15 9 900
VX55325123 2.3873 7.5 230 24.7 33 30.61 15 100 18.5 25.2 9 15 9 1200
VX55335063 3.1831 10 630 34.6 46.6 43.41 15 100 28.6 36.7 11 18 11 600
VX55335093 3.1831 10 930 34.6 46.6 43.41 15 100 28.6 36.7 11 18 11 900
VX55335123 3.1831 10 1230 34.6 46.6 43.41 15 100 28.6 36.7 11 18 11 1200
Total  pitch  error  GTF/1000<0.036mm
