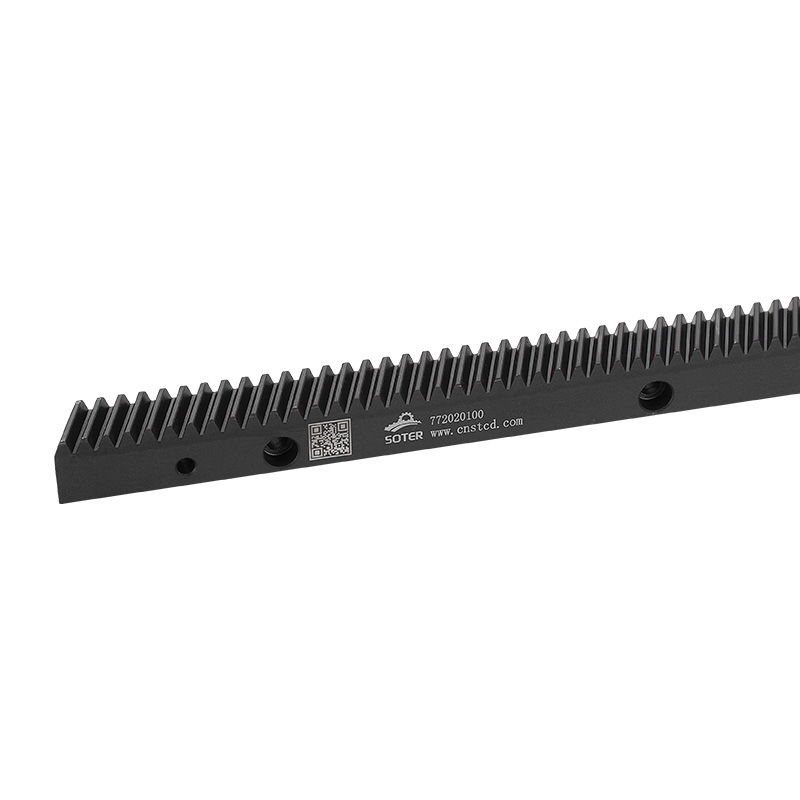

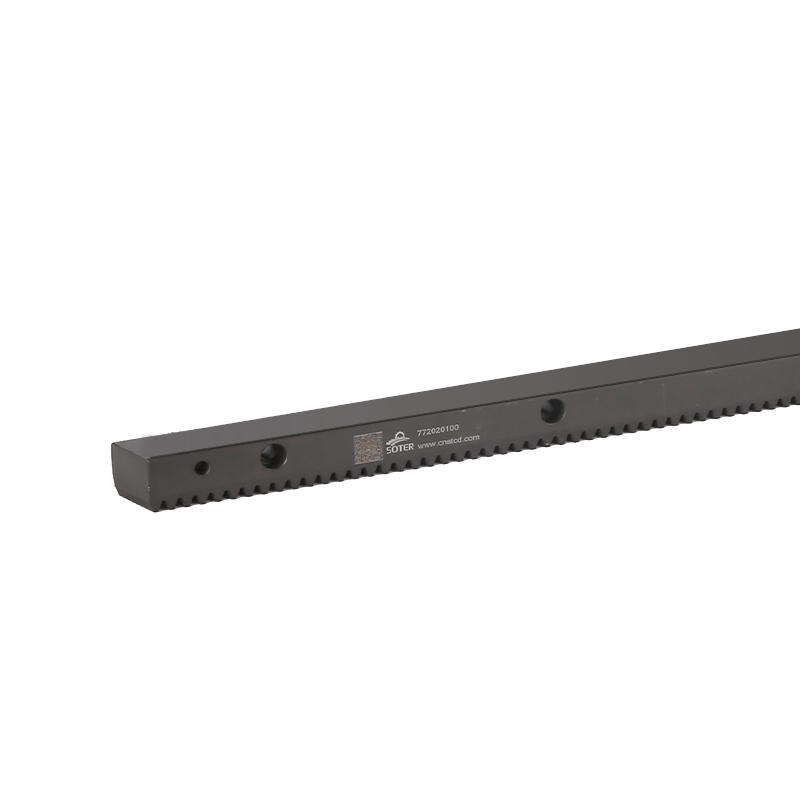

DIN8 Helical-Toothed Milled Rack

Technical requirement

Quality Grade: DIN 8

Material: S45C

Tooth profile: helical teeth

Right Hand Angle: 19°31'42"

Hardness treatment: high frequency quenching HRC48-52°

Production process: four sides flat grinding, fine insertion, surface blackening, or phosphating.

Introducing the SOTER DIN8 Helical-Toothed Milled Rack, a robust and reliable solution meticulously crafted to meet the demanding standards of various industrial applications.

Functional Advantages:

Quality Grade:

The DIN8 Helical-Toothed Milled Rack adheres to the DIN 8 quality grade, ensuring the high standards of precision and durability. This designation signifies that the rack meets the rigorous technical specifications laid out by the German Institute for Standardization.

High Precision:

The DIN8 Helical-Toothed Milled Rack is designed to deliver high precision in motion control applications. Its helical tooth profile and right-hand angle contribute to small backlash, ensuring that every movement is executed accurately.

Versatile Applications:

This milled rack finds applications across a spectrum of industries, including robotics, automation, CNC machinery, and more. Its versatile design and robust construction make it suitable for environments.

Enhanced Efficiency:

The incorporation of helical teeth not only reduces backlash but also contributes to increased efficiency in power transmission. This results in improved overall system performance, reducing energy consumption and enhancing operational efficiency.

Longevity and Reliability:

The S45C material combined with high-frequency quenching imparts good durability to the rack. This longevity ensures that the DIN8 Helical-Toothed Milled Rack can withstand the rigors of continuous operation, providing reliability in critical applications.

Production Process:

Our advanced production processes involve four sides flat grinding to achieve precise dimensional accuracy. Fine insertion techniques are employed to ensure tooth geometry. The surface is then treated through either blackening or phosphating processes, providing corrosion resistance and enhancing the rack's aesthetic appeal.

Corporate Strengths:

Customer-Centric Approach:

At SOTER, we prioritize our customers' needs and requirements. Our customer-centric approach ensures that the DIN8 Helical-Toothed Milled Rack is not just a product but a solution tailored to meet the specific demands of our diverse clientele. We engage in continuous dialogue with our customers to understand their challenges and deliver solutions.

Quality Assurance:

Quality is the bedrock of our manufacturing processes. From material selection to production techniques, every step is subject to rigorous quality control measures. The DIN8 Helical-Toothed Milled Rack undergoes inspections to guarantee that each unit leaving our facilities meets the exacting standards set by SOTER.

Adaptability and Innovation:

In a rapidly evolving technological landscape, adaptability and innovation are paramount. SOTER embraces change and continually invests in research and development to stay ahead of industry trends. The DIN8 Helical-Toothed Milled Rack reflects our commitment to innovation, providing our customers with solutions that anticipate and address emerging challenges.

Adaptive Logistics:

Our adaptive logistics system ensures timely and efficient delivery of our products. Whether our customers require bulk shipments for large-scale industrial projects or precision quantities for bespoke applications, SOTER's logistics network is designed to cater to the unique demands of each order. This flexibility is a testament to our commitment to meeting customer expectations.

In conclusion, the DIN8 Helical-Toothed Milled Rack by SOTER is a testament to our dedication to precision engineering and customer satisfaction. As we continue to innovate and evolve, our customers can trust SOTER as a reliable partner in their pursuit of engineering excellence.

PREV: DIN6 Helical Teeth Ground Gear Rack
NEXT:No next article

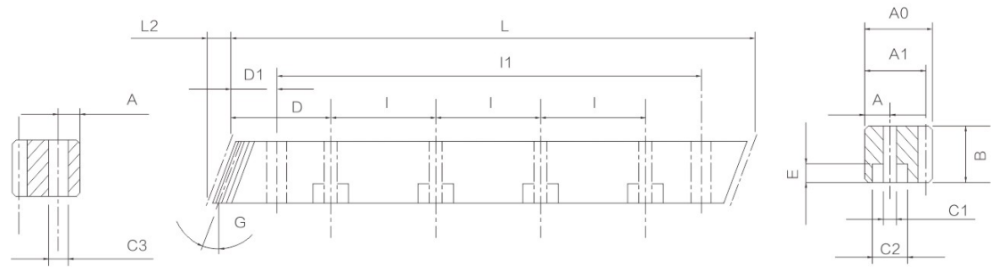

Code			Module	Pt	L	L2	Tooth No.	B	A0	A1	D	l	Hole No.	A	C1	C2	E	D1	l1	C3	Fp
772	010	050	1.5	4.9999	500.00	6	100	17	17	15.5	62.5	125	4	7	6	9.5	7	31.7	436.6	5.7	0.08
772	010	100	1.5	4.9999	1000.00	6	200	17	17	15.5	62.5	125	8	7	6	9.5	7	31.7	936.6	5.7	0.09
772	015	050	1.5	4.9999	500.00	6.74	100	19	19	17.5	62.5	125	4	8	7	11	7	31.7	436.6	5.7	0.08
772	015	100	1.5	4.9999	1000.00	6.74	200	19	19	175	62.5	125	8	8	7	11	7	31.7	936.6	5.7	0.09
772	020	050	2	6.6666	500.00	8.5	75	24	24	22	62.5	125	4	8	7	11	7	31.7	436.6	5.7	0.08
772	020	100	2	6.6666	1000.00	8.5	150	24	24	22	62.5	125	8	8	7	11	7	31.7	936.6	5.7	0.09
772	030	050	3	9.9999	500.00	10.3	50	29	29	26	62.5	125	4	9	10	15	9	35.0	430.0	7.7	0.088
772	030	100	3	9.9999	1000.00	10.3	100	29	29	26	62.5	125	8	9	10	15	9	35.0	930.0	7.7	0.101
772	040	050	4	13.3333	506.67	13.8	38	39	39	35	62.5	125	4	12	10	15	9	33.3	433.0	7.7	0.095
772	040	100	4	13.3333	1000.00	13.8	75	39	39	35	62.5	125	8	12	10	15	9	33.3	933.4	7.7	0.109
772	050	050	5	46.6666	500.00	17.4	30	49	39	34	62.5	125	4	12	14	20	13	37.5	425.0	11.7	0.095
772	050	100	5	6.6666	1000.00	17.4	60	49	39	34	62.5	125	8	12	14	20	13	37.5	925.0	11.7	0.109
772	060	050	6	9.9999	500.00	20.9	25	59	49	43	62.5	125	4	16	18	26	17	37.5	425.0	15.7	0.095
772	060	100	6	9.9999	1000.00	20.9	50	59	49	43	62.5	125	8	16	18	26	17	37.5	925.0	15.7	0.109
772	080	050	8	26.6667	480.00	28.0	18	79	79	71	60.0	120	4	25	22	33	21	20	240.0	19.7	0.1
772	080	100	8	26.6667	960.00	28.0	36	79	79	71	60.0	120	8	25	22	33	21	20	720.0	19.7	0.11
772	100	100	10	33.3333	1000.00	35.11	30	99	99	89	62.5	125	8	32	33	48	32	25	750.0	19.7	0.12
772	120	100	12	39.9999	1000.00	42.56	25	20	120	108	40	125	8	40	39	58	38	125	750.0	19.7	0.12

Pe= Modulus × π/COS(19°31'42") Fp= Total Pitch Error
