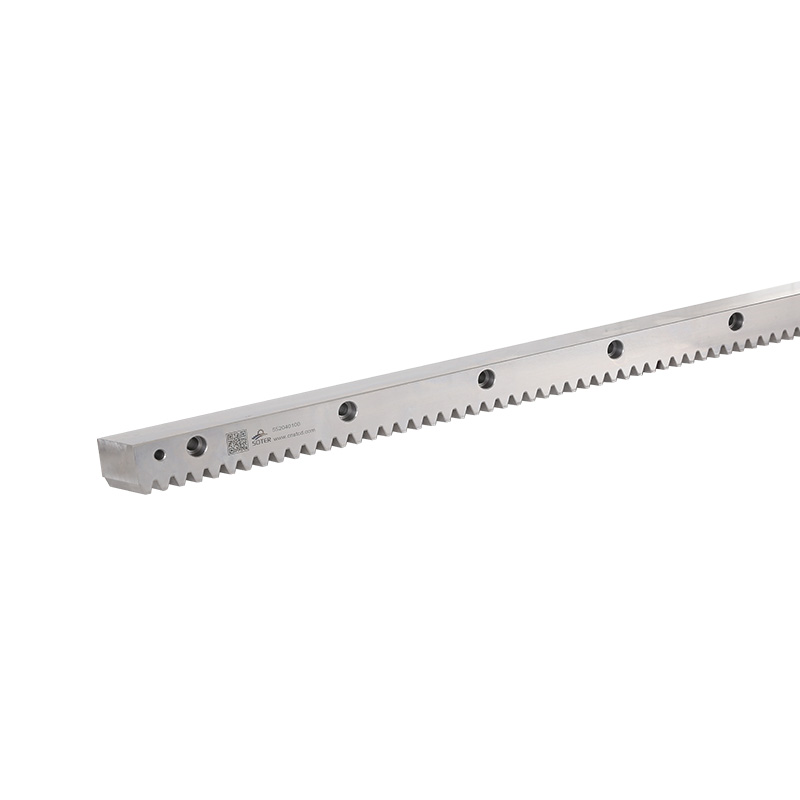

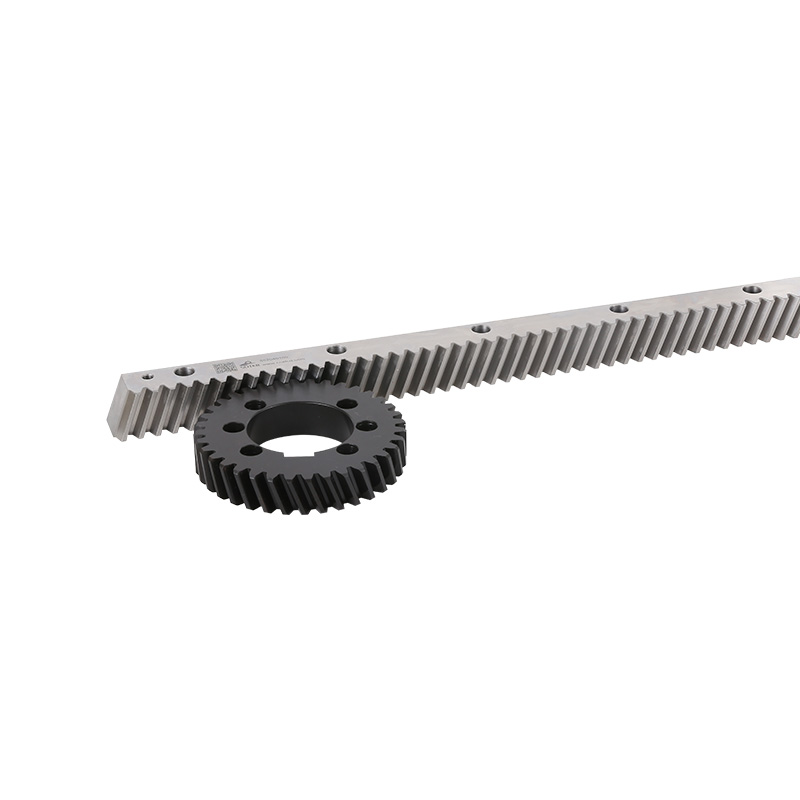

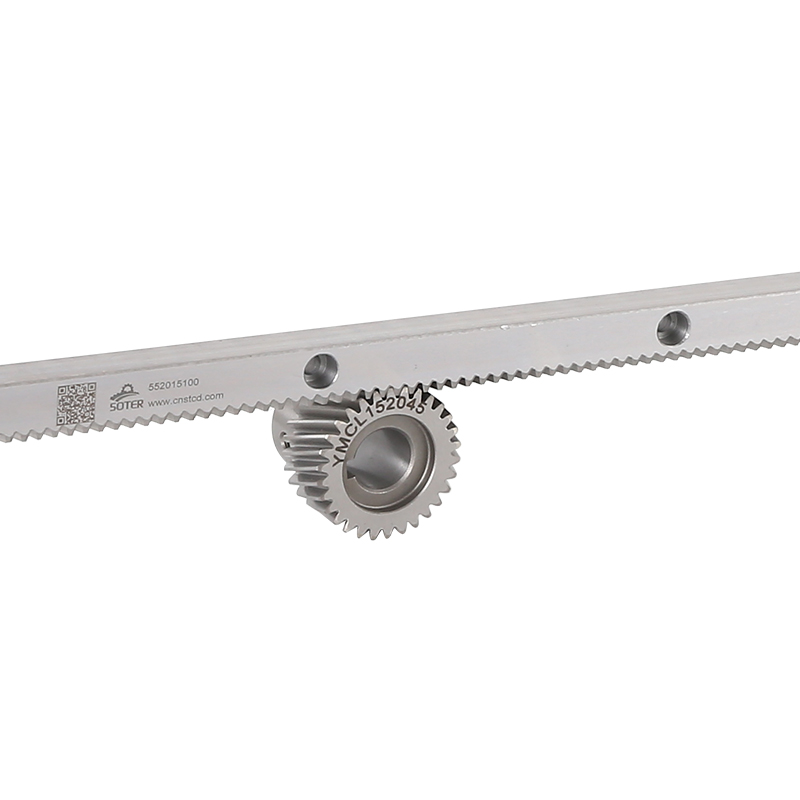

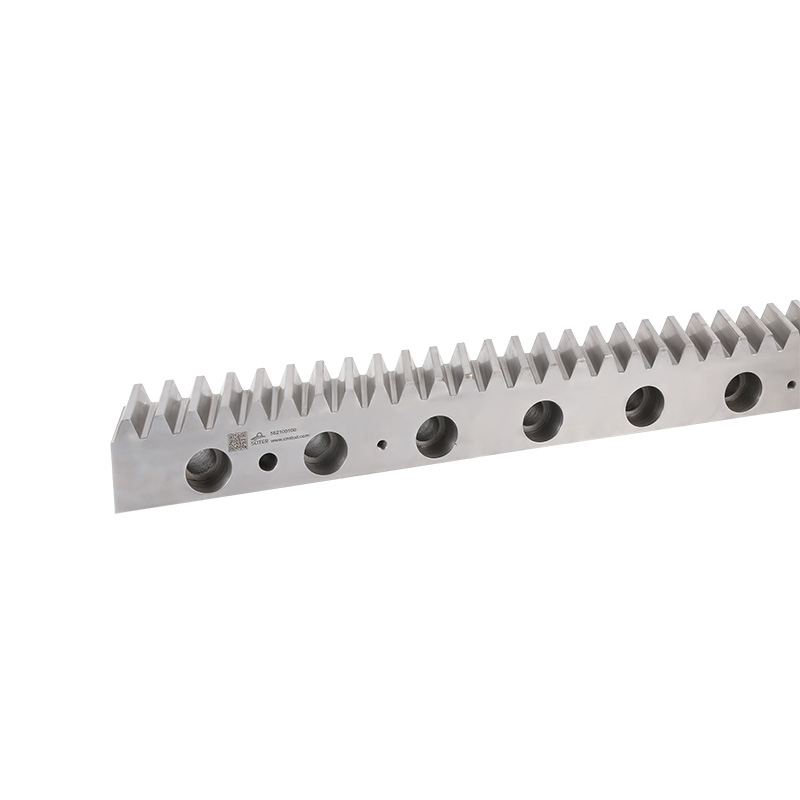

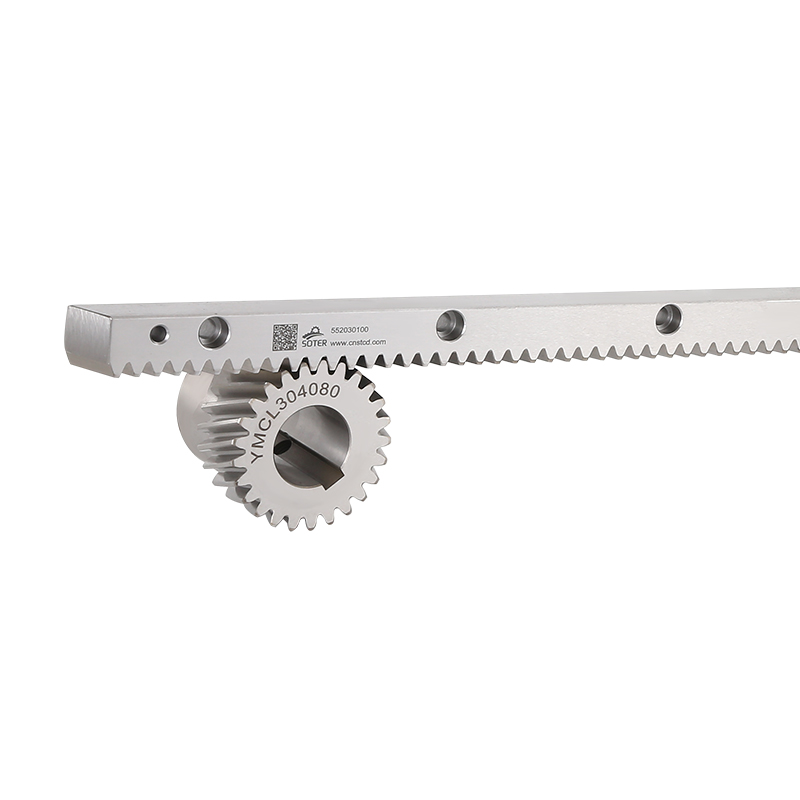

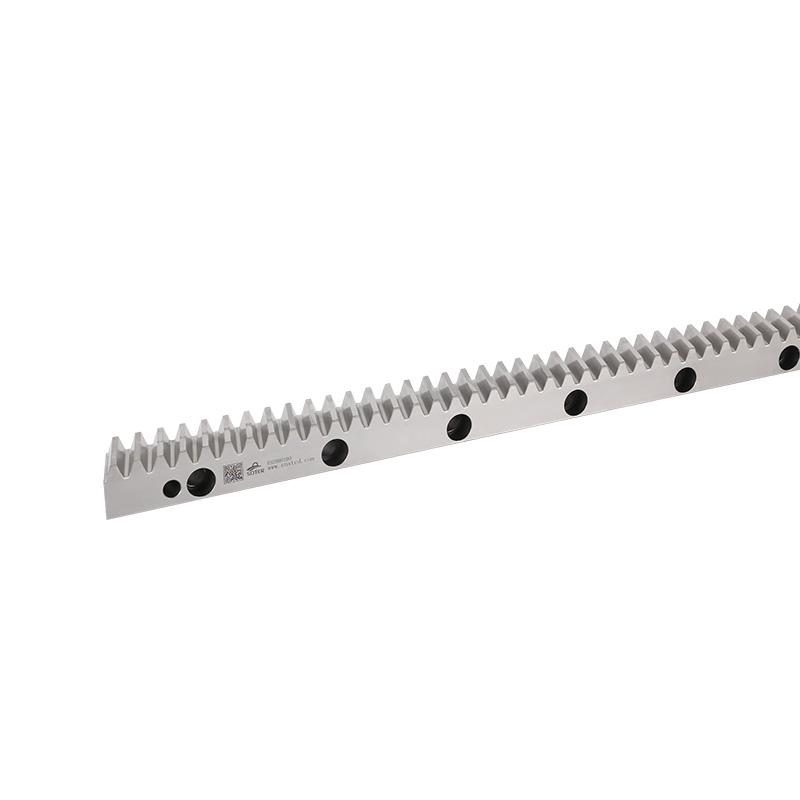

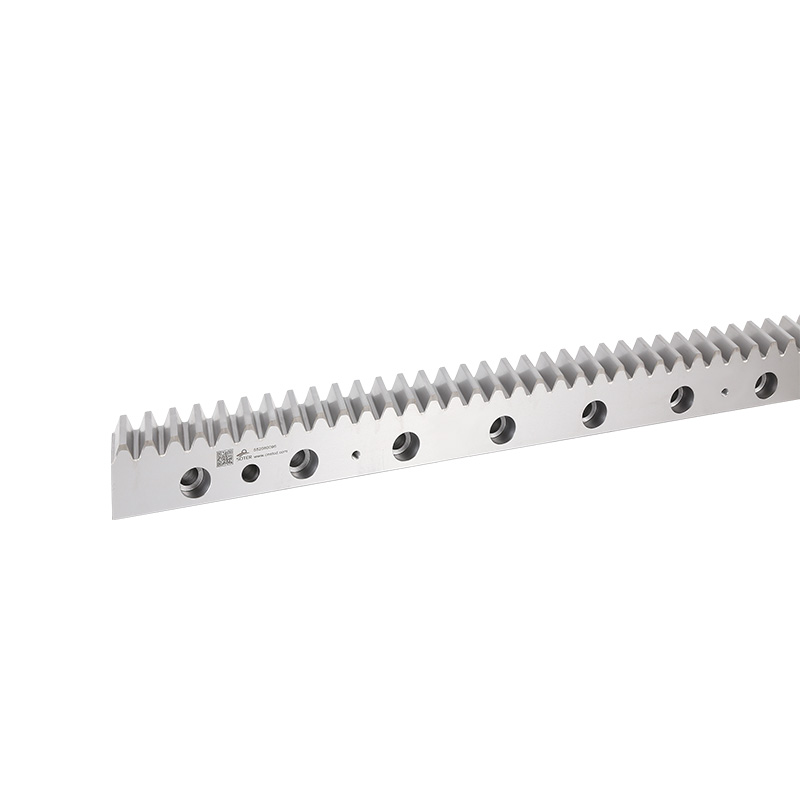

DIN6 Helical Teeth Ground Gear Rack

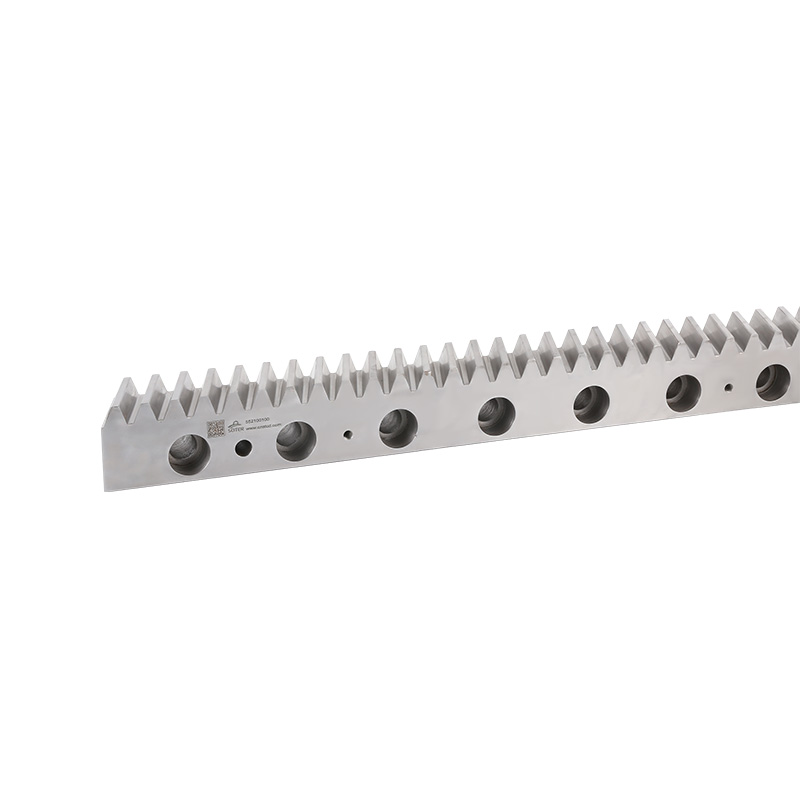

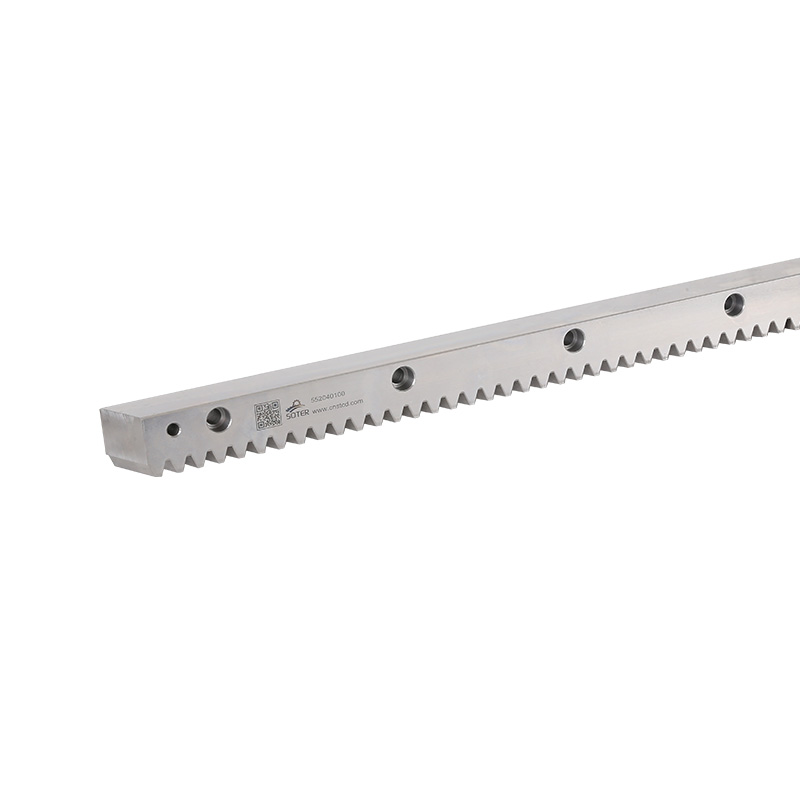

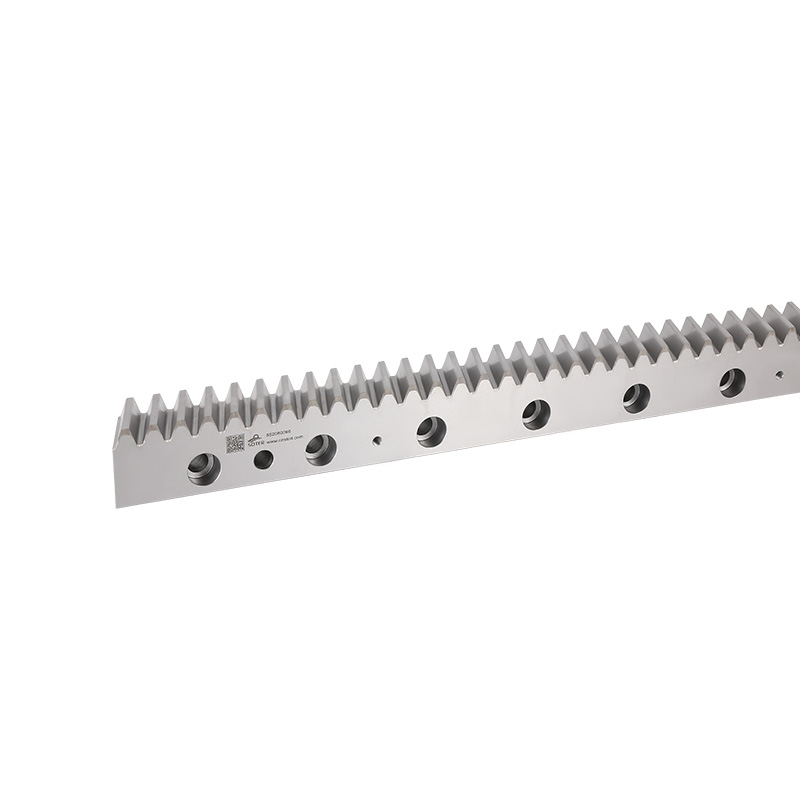

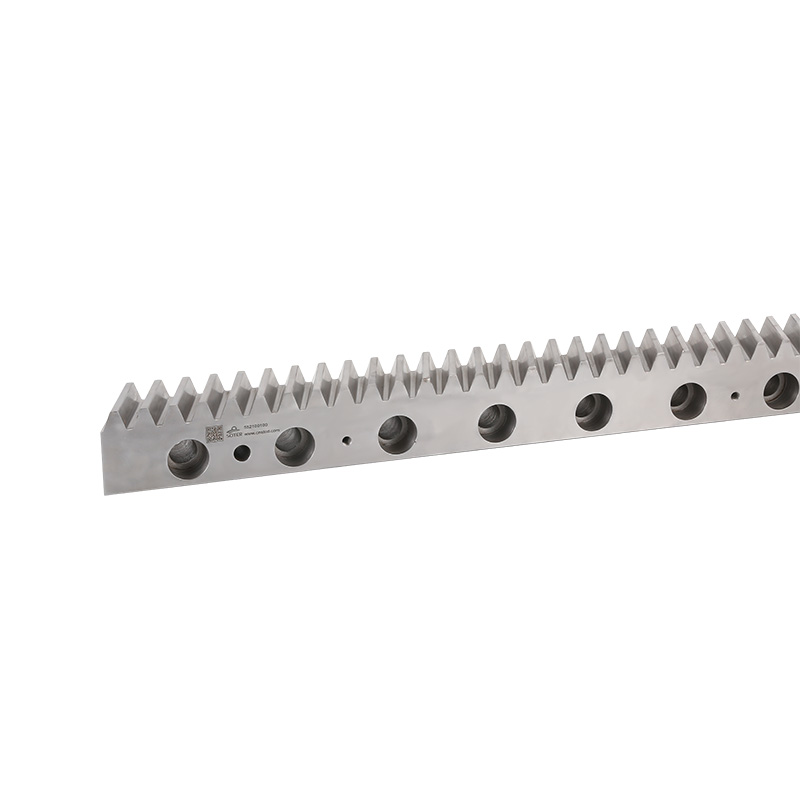

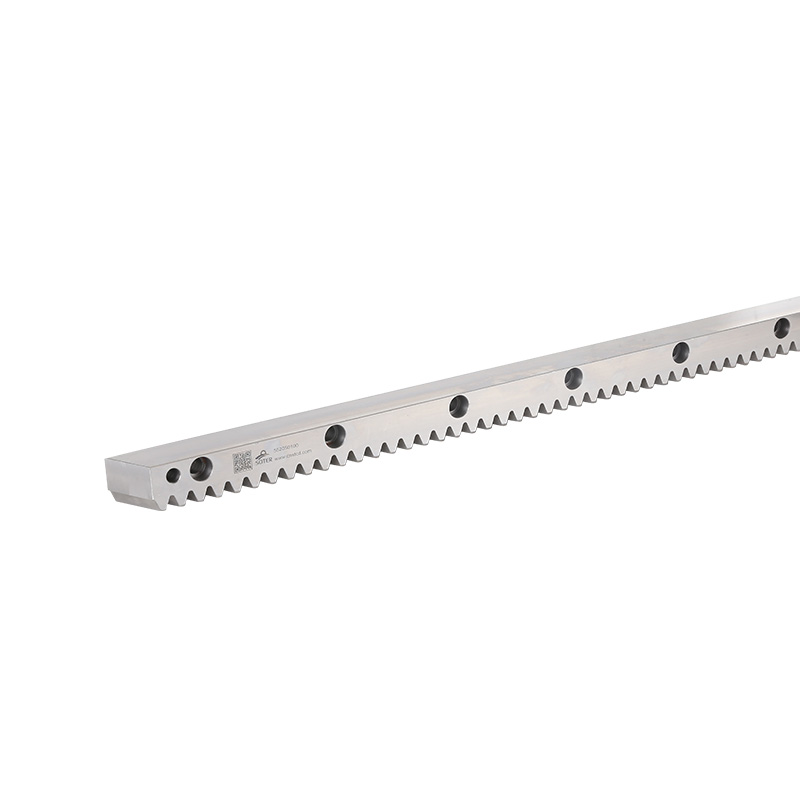

DIN6 Helical Teeth Ground Gear Rack

Technical requirement
Quality Grade: DIN 6
Material: S45C/42CrMo
Tooth profile: helical teeth
Right Hand Angle: 19°31'42"
Hardness treatment: high frequency quenching HRC48-52/ HRC50-55°
Production process: Ground on all sides after hardening

SOTER is proud to present the DIN6 Helical Teeth Ground Gear Rack, a robust and reliable solution that stands out in the field of mechanical components. Crafted with precision and designed for durability, this gear rack exemplifies our commitment to quality engineering and practical functionality.
Product Features:
Helical Teeth Design:
The DIN6 Gear Rack boasts a sophisticated helical teeth design, providing enhanced performance and smoother operation. This innovative design ensures efficient power transmission while reducing wear and tear, contributing to the longevity of the product.
Ground Gear Accuracy:
Our gear rack undergoes a meticulous grinding process, ensuring precise tooth profiles and accurate dimensions. This ground gear accuracy results in small backlash, offering users a reliable and consistent performance in various applications.
High-Quality Materials:
SOTER understands the importance of using premium materials in manufacturing. The DIN6 Gear Rack is constructed with high-quality alloy steel, known for its strength and resistance to fatigue. This choice of material guarantees a robust and resilient product suitable for demanding industrial environments.
Versatility in Applications:
The versatile design of the DIN6 Gear Rack makes it suitable for a wide range of applications. Whether used in linear motion systems, conveyor systems, or other machinery, this gear rack adapts seamlessly to diverse operational requirements.
Corrosion Resistance:
To ensure longevity in various environmental conditions, the gear rack undergoes a corrosion-resistant treatment. This feature makes it well-suited for applications in industries where exposure to moisture or harsh elements is a concern.
Applications:
The DIN6 Helical Teeth Ground Gear Rack finds its application in numerous industrial settings due to its versatile and reliable nature. Some key applications include:
Conveyor Systems:
In conveyor systems, the DIN6 Gear Rack plays a role in facilitating the efficient transfer of goods. Its durability and precision contribute to the seamless operation of conveyor belts, enhancing overall system performance.
Machine Tools:
The gear rack is well-suited for use in various machine tools, contributing to the precision and efficiency of cutting, milling, and shaping processes. Its high-quality construction ensures stability and accuracy in these applications.
Automated Systems:
Automation is a key focus in modern industries, and the DIN6 Gear Rack excels in automated systems, providing the necessary reliability and precision for tasks such as robotic movements and material handling.
Advantages:
Reliability in Performance:
The DIN6 Gear Rack's helical teeth design, combined with ground gear accuracy, ensures a reliable and consistent performance over extended periods. This reliability reduces downtime and contributes to overall operational efficiency.
Cost-Effective Solution:
With a focus on practical functionality, the DIN6 Gear Rack offers a cost-effective solution without compromising on quality. Its longevity and minimal maintenance requirements contribute to a lower total cost of ownership for end-users.
Easy Integration:
The versatile design of the gear rack allows for easy integration into existing systems. Whether retrofitting or incorporating it into new machinery, the DIN6 Gear Rack adapts seamlessly, reducing installation complexities.
In conclusion, the DIN6 Helical Teeth Ground Gear Rack by SOTER embodies a commitment to practical excellence and reliability. Its innovative design, durable construction, and versatile applications make it a choice for industries seeking a dependable solution for their mechanical power transmission needs. SOTER remains dedicated to providing quality engineering solutions that meet the expectations of our valued customers.
Contact Us
PREV: No previous article
NEXT:DIN8 Helical-Toothed Milled Rack

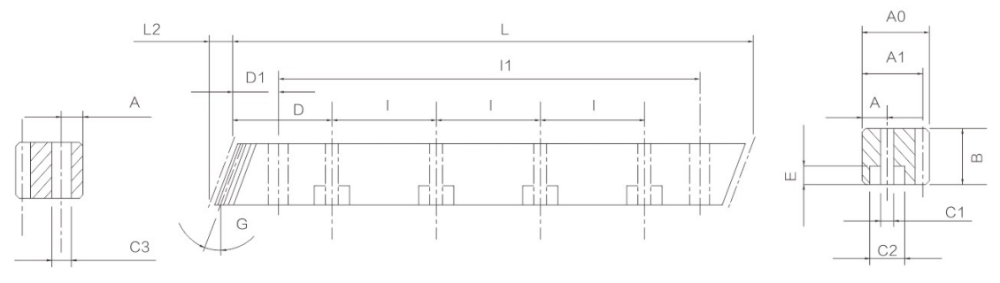

Code Module Pt L L2 Tooth
No.		 B A0   A1 D I Hole
No.		  A C1 C2 E D1 I1 C3 Fp
552 010 050   1.5 4.9999 500.00 6 100 17 17 15.5 62.5 125 4  7 6 9.5 7 31.7 436.6 5.7 0.029
552 010 100   1.5 4.9999 1000.00 6 200 17 17 15.5 62.5 125 8  7 6 9.5 7 31.7 936.6 5.7 0.033
552 015 050   1.5 4.9999 500.00 6.74 100 19 19 17.5 62 125 4  8 7 11 7 31.7 436.6 5.7 0.029
552 015 100   1.5 4.9999 1000.0 6.74 200 19 19 17.5 62.5 125 8  8 7 11 7 31.7 936.6 5.7 0.033
552 020 050    2 6.6666 500.00 8.5 75 24 24   22 62.5 125 4  8 7 11 7 31.7 436.6 5.7 0.029
552 020 100    2 6.6666 1000.0 8.5 150 24 24   22 62.5 125 8  8 7 11 7 31.7 936.6 5.7 0.034
552 030 050    3 9.9999 500.00 10.3 50 29 29   26 62.5 125 4  9 10 15 9 35.0 430.0 7.7 0.032
552 030 100    3 9.9999 1000.0 10.3 100 29 29   26 62.5 125 8  9 10 15 9 35.0 930.0 7.7 0.037
552 040 050    4 13.3333 506.67 13.8 38 39 39   35 62.5 125 4  12 10 15 9 33.3 433.0 7.7 0.034
552 040 100    4 13.3333 1000.0 13.8 75 39 39   35 62.5 25 8  12 10 15 9 33.3 933.4 7.7 0.04
552 050 050    5 16.6666 500.00 17.4 30 49 39   34 62.5 25 4  12 14 20 13 37.5 425.0 11.7 0.034
552 050 100    5 16.6666 1000.0 7.4 60 49 39   34 62.5 25 8  12 14 20 13 37.5 925.0 11.7 0.04
552 060 050    6 19.9999 500.00 20.9 25 59 49   43 62.5 125 4  16 18 26 17 37.5 4250 15.7 0.034
552 060 100    6 19.9999 1000.0 20.9 50 59 49   43 62.5 25 8  16 18 26 17 37.5 925.0 15.7 0.04
552 080 050    8 26.6667 480.00 28.0 18 79 79   71 60.0 20 4  25 22 33 21 120 240.0 19.7 0.037
552 080 100    8 26.6667 960.00 28.0 36 79 79   71 60.0 20 8  25 22 33 21 120 720.0 19.7 0.043
552 100 100   10 33.3333 1000.0 35.11 30 99 99   89 62.5 25 8  32 33 48 32 125 750.0 19.7 0.043
552 120 100   12 39.9999 1000.0 42.56 25 120 120  108 40 25 8  40 39 58 38 125 750.0 19.7 0.046
Pe= Modulus × π/COS(19°31'42") Fp= Total Pitch Error
